GaN HEMTs for Base Station

製品検索

Product Name: Frequency: GHz to GHz

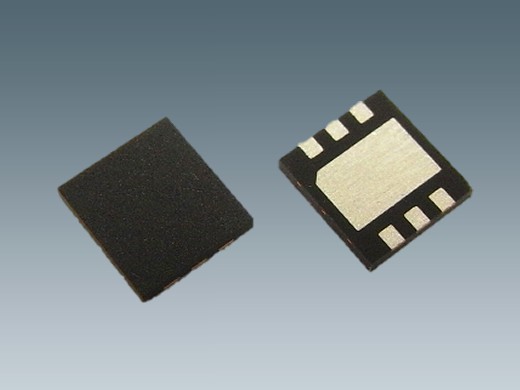

Specifications (Driver and Final Stage)

Part Number Freq. (GHz) Specified Freq. (GHz) Psat (dBm) Pout (dBm) Gp (dB) ηd (%) VDS (V) IDS (DC) (mA) Rth
(°C/W)
SG26F30S-D DC-2.7 2.65 46 32.5 18.5 13.5 50 150 5.5
SGFCF10S-D DC-3.7 2.65 41 27.5 19.5 13.5 50 50 10
SGFCF15S-D DC-3.7 2.65 42.5 29 19.5 13.5 50 75 9
SGFCF20S-D DC-3.7 2.65 44 30.5 19 13.5 50 100 7
SGFCF20T-D (*) DC-3.7 2.65 41 27.5 19.5 13.5 50 50 10
SGFCF30T-D (*) DC-3.7 2.65 42.5 29 19.5 13.5 50 75 9
SGFCF40T-D (*) DC-3.7 2.65 44 30.5 19 13.5 50 100 7
SG36F30S-D 3.3-3.7 3.6 45.5 32 17 12.5 50 150 5.5

*Specification of one path

Naming Rule

Specifications (Driver Stage)

Part Number Freq. (GHz) Psat (dBm) Pout (dBm) Gp (dB) ηd (%) VDS (V) IDS(DC) (mA) Rth
(°C/W)
EGN21C020MK 2.14 43.5 30 19 12.5 50 100 6.0
EGN21C030MK 2.14 45.0 31.5 19 12.5 50 150 5.0
EGN26C020MK 2.6 43.5 30 18 12.5 50 100 6.0
EGN26C030MK 2.6 45.0 31.5 18 12.5 50 150 5.0
EGN35C030MK 3.5 45.0 31.5 16.5 11 50 150 5.0
Naming Rule

Specifications (Final Stage)

Part Number Freq. (GHz) Psat (dBm) Pout (dBm) Gp (dB) ηd (%) VDS (V) IDS(DC) (mA) Rth
(°C/W)
EGNC105MK 0.9 51.0 43.0 20.0 35 50 400 2.0
EGNC160MK 0.9 52.5 44.5 18.0 35 50 600 1.4
EGNC210MK 0.9 53.5 45.5 17.5 35 50 750 1.1
EGN16C105MK 1.6 50.5 42.5 19.0 33 50 400 2.0
SGN19C210I2D 1.9 53.0 45.0 18.5 32 50 750 1.1
SGN19C160I2D 1.96 52.3 44.5 18.0 35 50 600 1.4
SGN21C105MK 2.1 50.3 42.5 17.0 32 50 400 2.0
EGN21C070MK 2.14 49.5 41.5 17.0 33 50 300 2.5
EGN21C105I2D 2.14 50.3 42.0 18.0 32 50 400 2.0
EGN21C160I2D 2.14 52.5 44.5 18.0 32 50 600 1.4
EGN21C210I2D 2.14 53.0 45.0 18.0 32 50 750 1.1
EGN21C320IV 2.14 55.0 47.0 18.0 31 50 1100 0.8
SGN21C050MK 2.14 47.0 39.0 18.5 33 50 200 3.0
EGN26C070I2D 2.6 48.8 40.8 18.0 35 50 300 2.5
EGN26C070MK 2.6 48.8 40.8 16.5 30 50 300 2.5
EGN26C105I2D 2.6 50.3 42.0 17.0 32 50 400 2.0
EGN26C160I2D 2.6 52.5 44.5 16.0 30 50 600 1.4
EGN26C210I2D 2.6 53.0 45.0 16.0 30 50 750 1.1
SGN26C050MK 2.6 47.0 39.0 17.5 33 50 200 3.0
SGN27C160I2D 2.65 52.5 44.5 16.3 30 50 600 1.4
SGN27C210I2D 2.65 53.0 45.0 16.3 30 50 750 1.1
EGN35C070I2D 3.5 48.8 40.8 15.5 28 50 300 2.5
Naming Rule

Specifications (Peak Stage of Doherty Amplifier)

Part Number Freq. (GHz) Psat (dBm) Gp (dB) VDS (V) Rth
(°C/W)
Package
SGNC320MK 0.9 55.0 16.5 50 1.2 MK
SGN19C320I2D 1.9 55.0 18 50 1.2 I2D
SGN21C320I2D 2.14 55.0 17.5 50 1.2 I2D
SGN26C320I2D 2.6 55.0 16 50 1.2 I2D
Naming Rule
