SGNE045MK


Part Number SGNE045MK
Class Power GaN > GaN HEMTs for General Purpose
Outline / Package Code MK
Function High Voltage - High Power GaN-HEMT
Features
Description SEI's GaN-HEMT offers high efficiency, ease of matching, greater consistency and broad bandwidth for high power L-band amplifiers with 50V operation, and gives you higher gain.
This device target applications are low current and wide band applications for high voltage.
Datasheet ( PDF 410KB)

Frequency (GHz) 2.2
Condition CW
Psat Typ. (dBm) 47.5
GL.Typ (dB) 15
ηadd @Psat Typ. (%) 55
IDS (DC) (mA) 250
Rth Typ. (°C/W) 1.4
Note Tc(op)=+25°C
Further Information
Simulation
S-Parameter *Login required
Documents
Load-Pull *Login required
ApplicationNote Mounting Instructions for Packaged FETs and MMICs
(PDF 124KB)

Package Information

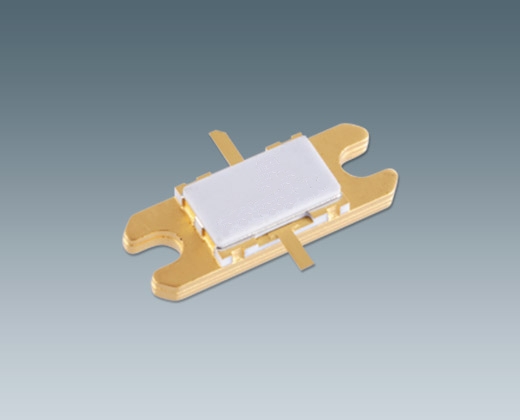

MK Package
MK
MK
