STA5600


Part Number STA5600
Class Chip and Chip-on-Carrier > CW-LD  > CW-LD

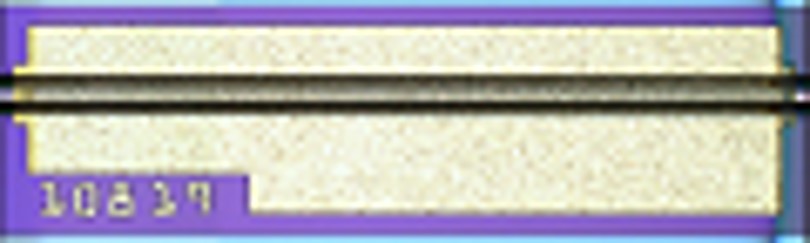

Product Type Chip
Application Light source for external modulator (e.g. Silicon Photonics)
Wavelength (nm) 1271nm to 1331nm(*1)
Po (dBm) Min. 18.0 (*2)
Chip Set Temperature (°C) 0 to 75
RIN Max -145dB/HZ

(*1)CWDM grid
(*2)Measured under SEDI’s test conditions. If = 360mA, T = 75℃
