Specifications

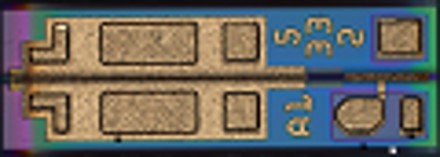

STA45
| Part Number | STA45 |
|---|---|
| Class | Chip and Chip-on-Carrier > EML |
| Product Type | Chip |
|---|---|
| Application | ･100G-DR1,FR1,LR1 ･400G-DR4,FR4,LR4 |
| Bit rate(Baud Rate) | 53G baud |
| Wavelength (nm) | 1271nm to 1331nm(*1) |
| Po (mW) | 5.5 (*2) |
| Operation Temperature (°C) | 50 to 60 |
| Extinction Ratio (dB) | 3.5dB (*2) |
(*1)CWDM grid
