SGC9395-100B-R
| Part Number | SGC9395-100B-R |
|---|---|
| Class | GaN Product > GaN HEMTs for Radar > Marine |

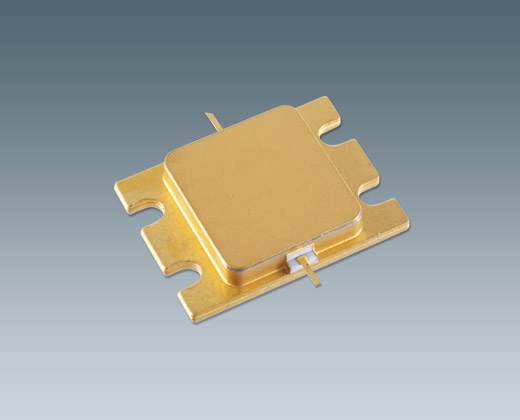

| Outline / Package Code | IK |
| Function | X-Band Internally Matched GaN-HEMT |
| Features |
|
| Description | The SGC9395-100B-R is a high power GaN-HEMT that is internally matched for X-band radar bands to provide optimum power and gain in a 50Ω system. |
| Datasheet | (  159KB) |
| Frequency f (GHz) | 9.3-9.5 |
|---|---|
| Pout (dBm) | 51 |
| Gp (dB) | 10 |
| Efficiency (%) | 41 |
| VDS (V) | 50 |
| lDS(DC) (A) | 0.33 |
| Rth (°C/W) | 1.4 |
| Conditions | Pulse Width: 100µsec, Duty 10% |
| Note | Tc(op)=+25°C |
