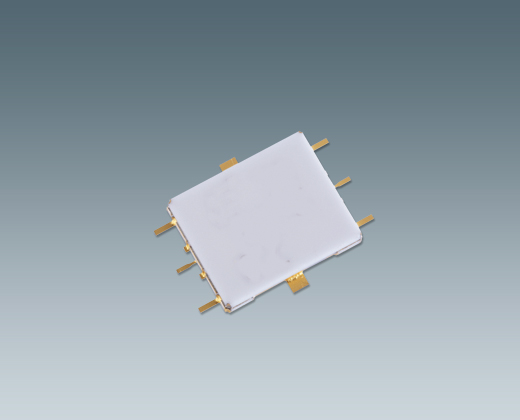

SGM6901VU
| Part Number | SGM6901VU |
|---|---|
| Class | GaN Product > GaN HEMTs for Radar > C/X |

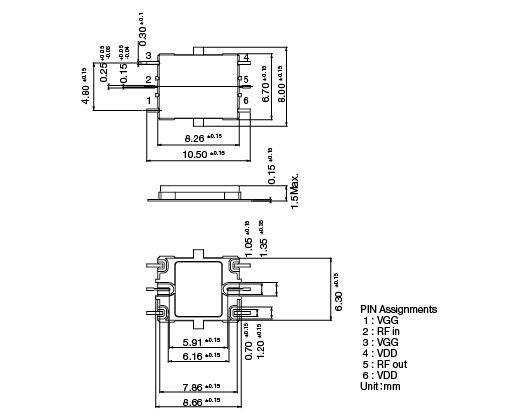

| Outline / Package Code | VU |
| Function | X-Band 24W GaN-HEMT Module |
| Features |
|
| Description | The SGM6901VU is a 24W GaN-HEMT Module that is internally matched for X-band radar bands to provide optimum power and gain in a 50Ω system. |
| Datasheet | (  506KB) |
| Frequency f (GHz) | 8.5-10.1 |
|---|---|
| Pout (dBm) | 45.3(-9.8) 44.8(9.8-) |
| Gp (dB) | 23.3(-9.8) 22.8(9.8-) |
| Efficiency (%) | 38 |
| VDS (V) | 50 |
| lDS(DC) (A) | 0.2 |
| lDS(RF) (A) | 1.8 |
| Rth (°C/W) | 2.1 |
| Conditions | Pulse Width: 100µsec, Duty 10% |
| Note | Tc(op)=+25°C |
