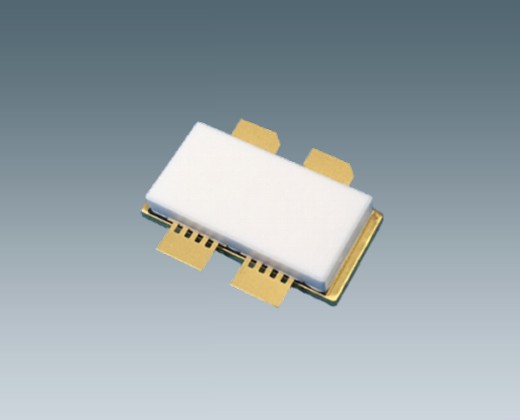

SGN2731-800L-R
| Part Number | SGN2731-800L-R |
|---|---|
| Class | GaN Product > GaN HEMTs for Radar |

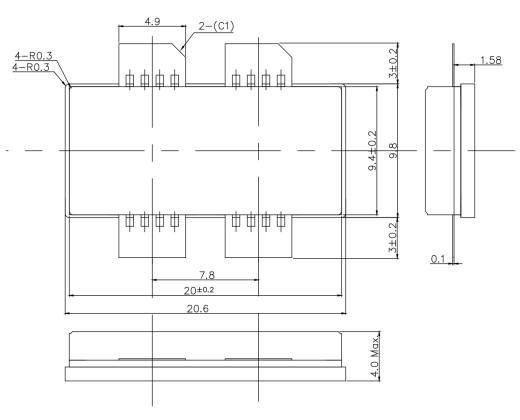

| Outline / Package Code | M2C |
| Function | High Voltage - High Power GaN-HEMT for Radar |
| Features |
|
| Description | Sumitomo Electric's GaN-HEMT SGN2731-800L-R offers high power, high efficiency ease of matching and greater consistency 2.7 to 3.1 GHz high power applications with 50V operation. |
| Datasheet | (  353KB) |
| Frequency (GHz) | 2.7-3.1 |
|---|---|
| Pout (dBm) | 60 |
| Power Gain (dB) | 15 |
| Efficiency (%) | 62 |
| VDS (V) | 50 |
| IDS(DC) (A) | 0.5 |
| Condition | Pulse width: 200µsec, Duty 10% |
| Note | Tc(op)=+25°C |
