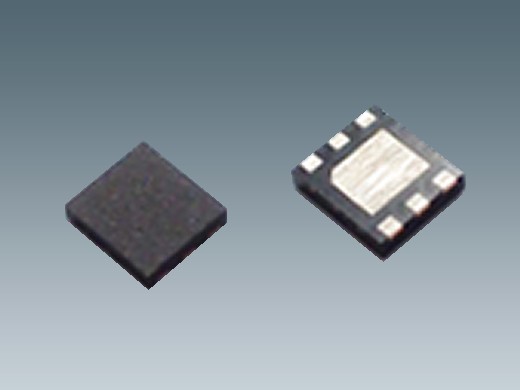

SGNL005Z2K-R
| Part Number | SGNL005Z2K-R |
|---|---|
| Class | GaN Product > GaN HEMTs for Radar |

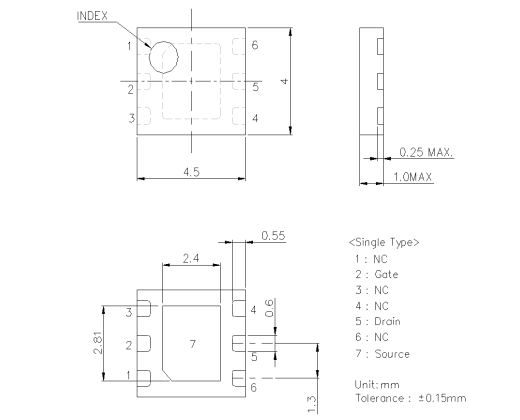

| Outline / Package Code | Z2K |
| Function | High Voltage - High Power GaN-HEMT for Radar |
| Features |
|
| Description | Sumitomo Electric's GaN-HEMT SGNL005Z2K-R offers high efficiency, ease of matching and greater consistency for DC to 5.0GHz Radar applications with 50V operation. SGNL005Z2K-R is suitable for broadband applications. |
| Datasheet | (  1316KB) |
| Frequency (GHz) | DC-5.0 |
|---|---|
| Pout (dBm) | 38.3 |
| Power Gain (dB) | 16 |
| Efficiency (%) | 52 |
| VDS (V) | 50 |
| IDS(DC) (A) | 0.02 |
| Rth (°C/W) | 9.5 |
| Condition | Pulse width: 5µsec, Duty 10% |
| Note | Tc(op)=+25°C |
