Performance
SGN2731-130L-R
| Part Number | SGN2731-130L-R |
|---|---|
| Class | GaN Product > GaN HEMTs for Radar |

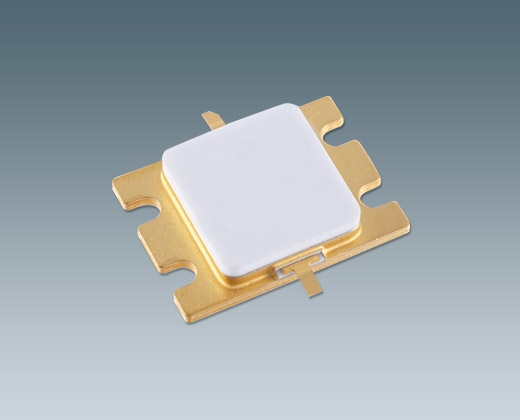

| Outline / Package Code | IV |
| Function | High Voltage - High Power GaN-HEMT for Radar |
| Features |
|
| Description | Sumitomo Electric's GaN-HEMT SGN2731-130L-R offers high power, high efficiency and greater consistency covering 2.7 to 3.1 GHz for S-band radar applications with 50V operation. |
| Datasheet | (  326KB) |
| Frequency (GHz) | 2.7-3.1 |
|---|---|
| Pout (dBm) | 52.2 |
| Power Gain (dB) | 16.2 |
| Efficiency (%) | 60 |
| VDS (V) | 50 |
| IDS(DC) (A) | 0.5 |
| Rth (°C/W) | 1.1 |
| Condition | Pulse width: 400µsec, Duty 25% |
| Note | Tc(op)=+25°C |
