Performance
SGK5872-20C
| Part Number | SGK5872-20C |
|---|---|
| Class | GaN Product > GaN HEMTs for Radio Link and SATCOM |

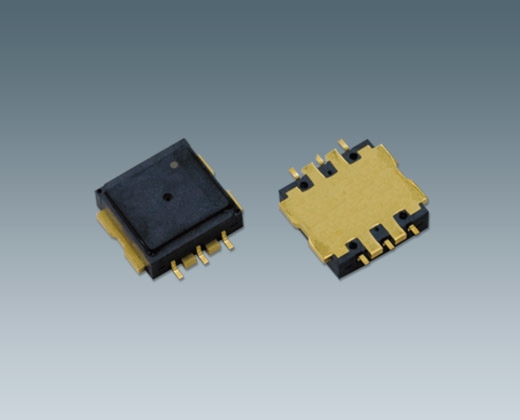

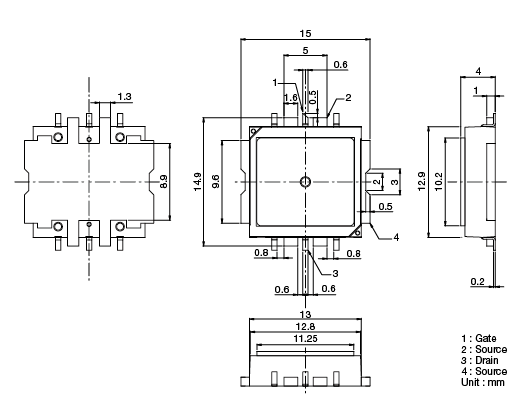

| Outline / Package Code | I2C |
| Function | C-Band Internally Matched GaN-HEMT |
| Features |
|
| Description | The SGK5872-20C is a high power GaN-HEMT that is internally matched for standard communication bands to provide optimum power and Linearity. |
| Datasheet | (  448KB) |
| Frequency f (GHz) | 5.85-7.2 |
|---|---|
| Pout (dBm) | 43 |
| GL (dB) | 14 |
| ηadd(%) | 41 |
| 2tone test lM3 (dBc) |
-43 |
| 2tone test @Pout S.C.L. (dBm) |
27.5 |
| VDS (V) | 24 |
| lDS(DC) (A) | 1 |
| lDS(RF) (A) | 2 |
| Rth (°C/W) | 2.7 |
| Note | Tc(op)=+25°C |
